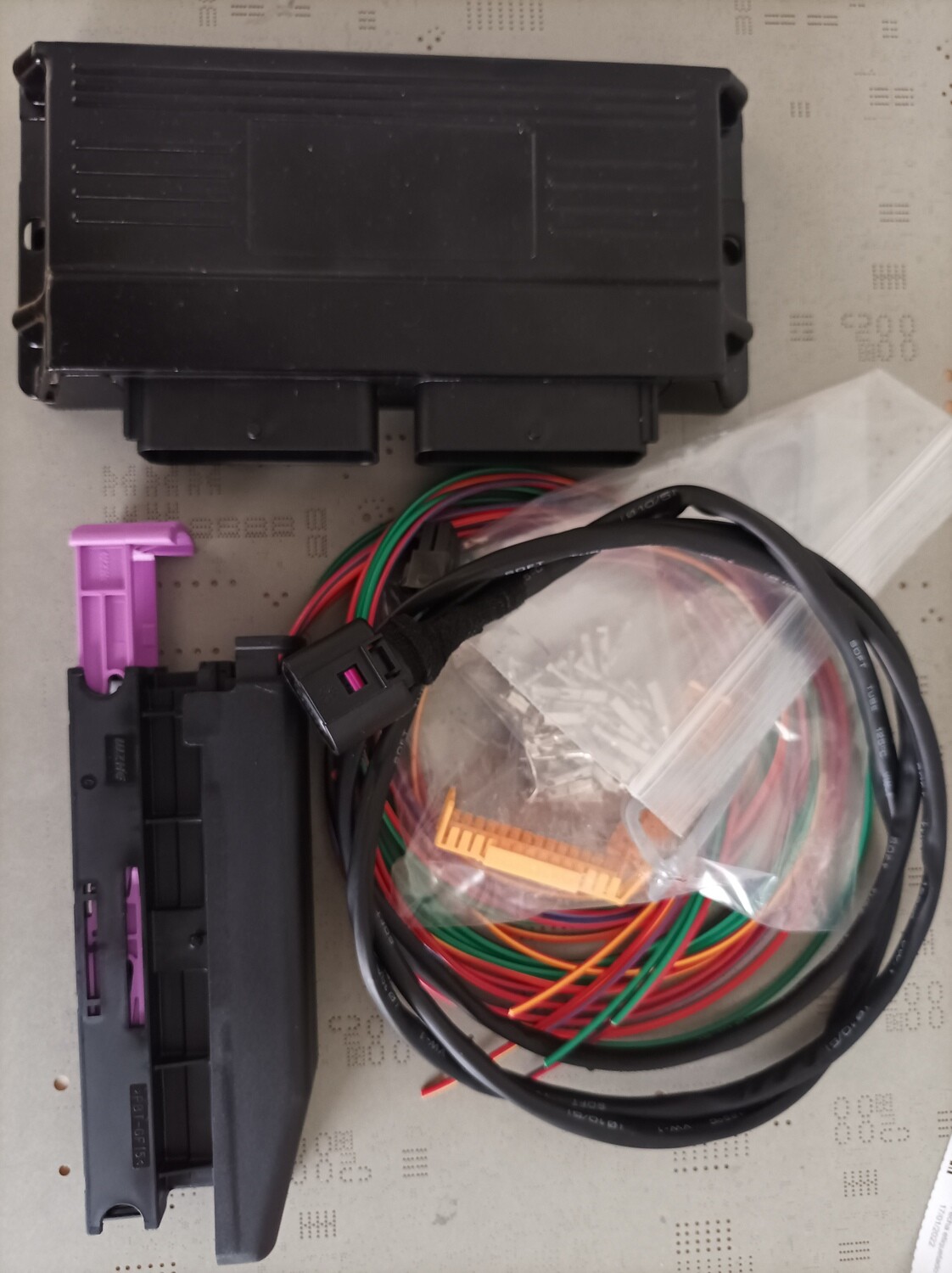

Standalone ECU 2 CYL
€400.00
Disponible
Información del producto
Standalone PnP
Paired mode,
Main features:
Keeps the original sensors.
Connected speed sensor, which allows detection of gear and visualization in TS, perform Launch control by speed, turbo pressure by speed or gear and many other options.
Original MAP sensor, with the option of changing for an internal one of up to 400 Kpas.
includes internal barometric sensor.
The unit is not waterproof, it must be inserted inside the vehicle.
In addition to the original functions, it includes:
4 auxiliary outputs PWM switching to ground.
4 ADC auxiliary inputs 0 to 5 V
3 switching inputs for Launch control, cut-off, double map, etc ...
In the case of selecting internal barometric pressure sensor, the EXT MAP input is used internally for the connection of the second MAP sensor, so this input should not be used from the rear in this case.
It also maintains most of the features of the Speeduino model:
Connection via USB
MAP sensor of 400 Kpas (3 bars of turbo pressure)
Ground switching outputs.
ADC inputs for external sensors. Pressure or temperature sensors, EGT (will need external amplifier circuit) etc ...
Ground switching inputs. Launch control Cut-Off, double map, etc ...
Charging in Speed Density (MAP sensor), Alpha-n (TPS position), MAF (flow meter) or mixtures between them
4x4 fuel and ignition maps
Possibility of wasted spark (IGBT included) or self-contained coils VW
Maps with variations of 0.1 in the fuel and variations of 0.1º for the ignition.
Combination of 4 x 4 fuel and ignition maps on different types of fuel and cargo, alpha-n, speed density, MAF, etc.
4x4 fuel maps and 4x4 ignition maps, to correct for fuel and ignition variations between cylinders
Injection start from 0º to 720º fixed or variable by 8 x 8 map
4 x 4 Turbo Pressure Maps
Two different fuel maps, Ignition and Boost Control, via switch
Open and closed loop control idle valve
Stepper control Idle valve
Turbo pressure control closed loop control.
2D or 3D maps for programmable outputs.
Traction control
Fixed or variable launch control
Map to adjust the methanol pump by PWM
Adjustable turbo pressure control via potentiometer, speed or even gears
Anti-lag
Continuous Variable Distributions and On-Off
Shift Cut with independent programmable times for 5 gears, for sequential snares
Free download tuning program
Free download data acquisition program
Test mode to check the operation of all outputs with the engine stopped, fuel pump, injectors, coils, valves and solenoids, etc ...
Many more features
Some features may not work in conjunction with each other. Some features may require additional circuitry.
