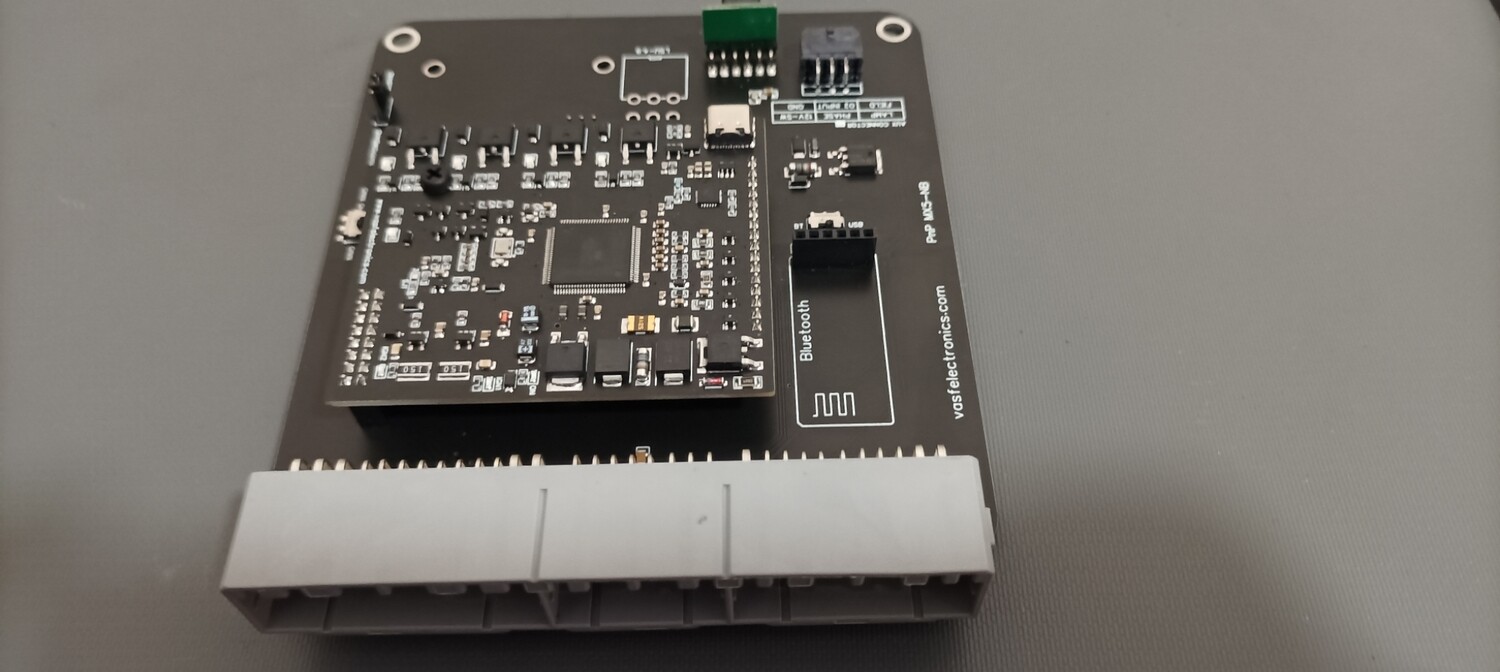

Mazda Mx-5 1.8NB PNP Gen2 Plug and Play ECU

Includes internal Map sensor, and basemap

-Controls alternator.

-400kpa map sensor

-Extra connector for Boost control

-2 extra ignition outputs to run individual coils

What you will get is flexible and configurable fuel and ignition management that will work for the majority of every day type setups. Currently supported features include:

• 16x16 3D fuel and ignition maps, with base of either TPS (Alpha-N) or MAP (Speed Density)
• Supports up to 8 cylinders fuel and ignition with 4 channels of fuel and 4 channels of ignition outputs
  • 1, 2 (Even fire only), 3 and 4 cylinder engines with full sequential fuel and ignition
  • 6 (even fire only) and 8 cylinder engines are supported with wasted spark and 2 squirts per cycle
• 6x6 3D individual cylinder trim on engines up to 4 cylinders
• After Start Enrichment
• Rev limiting (Spark based, hard and soft)
• Cranking specific enrichment, dwell timing and advance
• General logging through TunerStudio
• High speed tooth logging
• TPS calibration through TunerStudio
• Sensor calibration through TunerStudio (Coolant, IAT and O2)
• Warm Up Enrichment (WUE)
• TPS based acceleration enrichment
• Tacho output
• Fuel pump activation/deactivation (With priming)
• Over dwell and over duty protection
• Battery voltage compensation for dwell and injectors
• Miata 99-05
• Open and closed loop idle control (PWM and Stepper)
• Closed loop boost control
• Open loop VVT control
• Deceleration fuel cut off (DFCO)
• Launch control
• Flex fuel
• O2 based autotune (Registered version of TunerStudio required)
